Axle Stand
April 30, 2013
4:26 am
Avatar
Guest
Guest
Guest

I've got my axle stand finally started. It will be available to club members too.

Image Enlarger

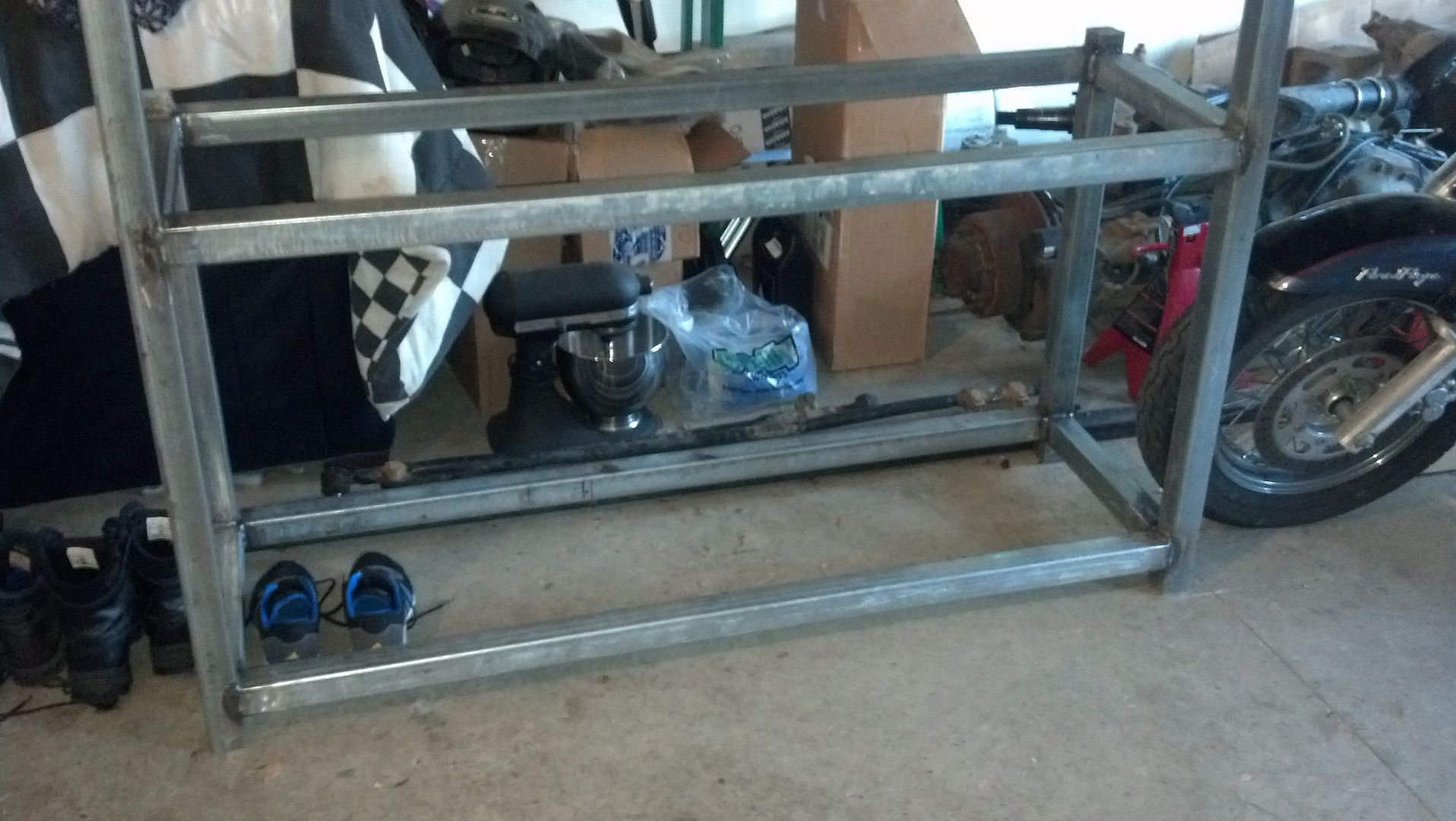

Few other details to add, such as casters, expanded metal, couple more struts, etc.

Gotta make some progress here --

Image Enlarger

April 30, 2013
5:38 am
Avatar
BKGM Jeepers
Folsom

Club Treasurer
Club Officer
Forum Posts: 6721
Member Since:
April 2, 2003
sp_UserOfflineSmall Offline

Cool idea!

April 30, 2013
6:05 am
Avatar
Guest
Guest
Guest

Look'n good but will the stand hold those puny axles?

April 30, 2013
7:45 pm
Avatar
BKGM Jeepers
Folsom

Club Treasurer
Club Officer
Forum Posts: 6721
Member Since:
April 2, 2003
sp_UserOfflineSmall Offline

Just saw a guy (on the way to work) who was dumpging a D60 front axle (8 lug). I bet it could have been purchased for 150 bucks or so! It was on his trailer below two water heaters...

May 1, 2013
12:56 am
Avatar
Guest
Guest
Guest

It's actually a little better than I thought. My limit will be the caster wheels I get. I think I'm gonna get 290 lb/caster ones that are step. You get a friction insert to the tube and it seats the flange very well. No welding needed.

Ella Caster Socket

[Image Can Not Be Found]

Stem Caster: Friction-Grip Stem Caster W/Brake, 5" X 1-1/4" Rubber, 7/16" X 1-3/8" Stem, 290#Cap
http://www.mcmaster.com/#stand.....rs/=mjwpve

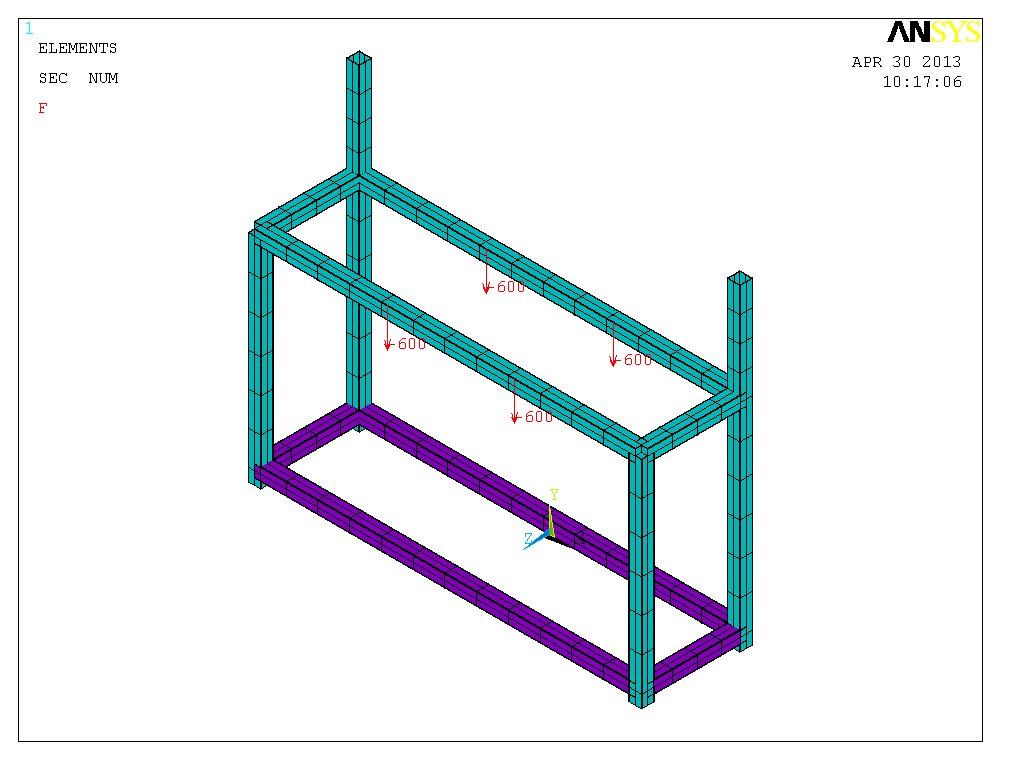

Simulating 1200 lbs on the top shelf (for the heck of it) and as point loads. Single axle is roughly 500 lbs.

Image Enlarger

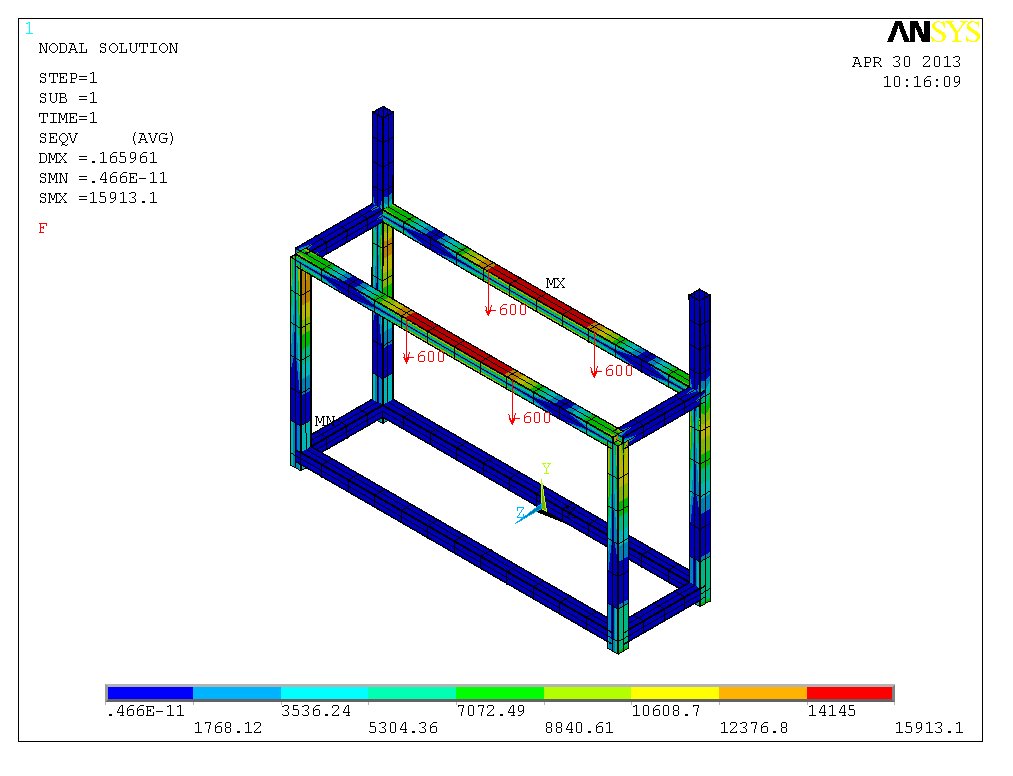

Deflection is just under 3/16" and roughly 16 ksi. Consider yield at 36 ksi for mild steel.

Image Enlarger

I think I'd like to make an adjustable shelf in the middle. Accomplished by sleeving solid round rod through the legs just like how a book shelf works. Something like that.

Yeah, I'll have an adjustable member for securing the pinion.

May 1, 2013
3:29 am
Avatar
Guest
Guest
Guest

Looks like you put too much weight on the middle of the stand, its turning red and melting.

May 9, 2013
3:19 am
Avatar
Guest
Guest
Guest

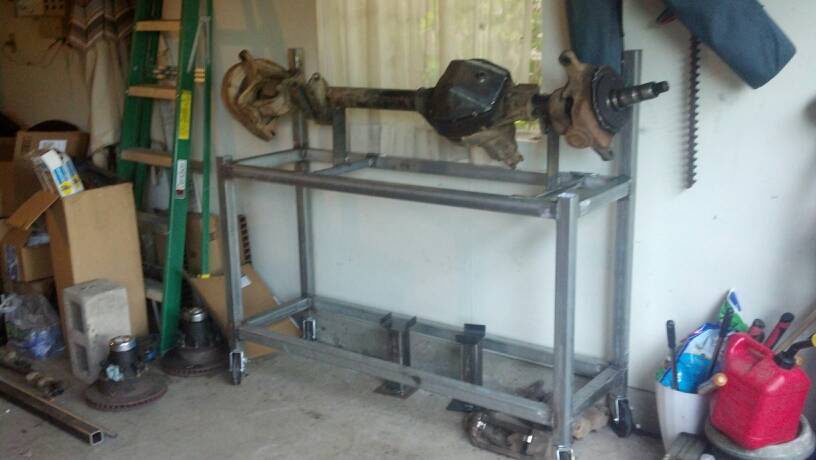

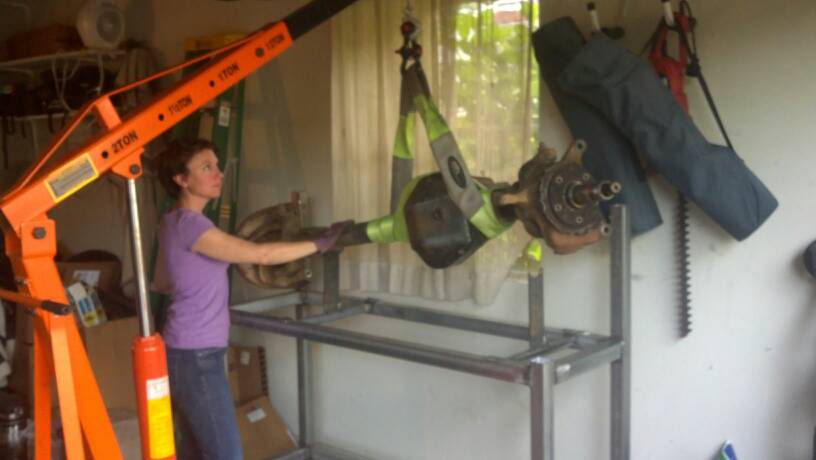

Ready for holding. Few more details to whack on it.

Attached files

79272=3599-uploadfromtaptalk1368069513953.jpgImage Enlarger 79272=3600-uploadfromtaptalk1368069547966.jpgImage Enlarger 79272=3601-uploadfromtaptalk1368069556224.jpgImage Enlarger

May 9, 2013
5:00 am
Avatar
Guest
Guest
Guest

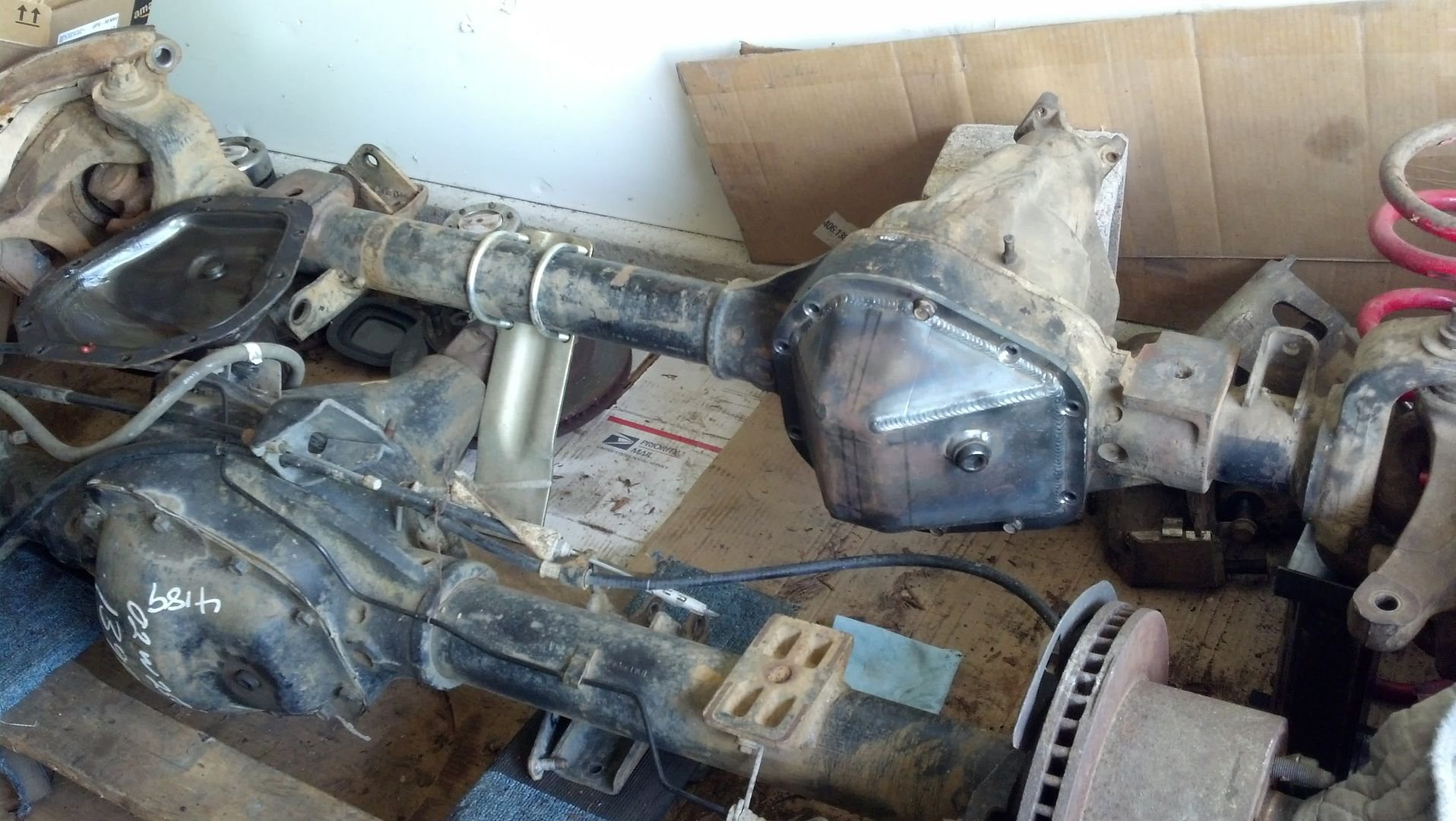

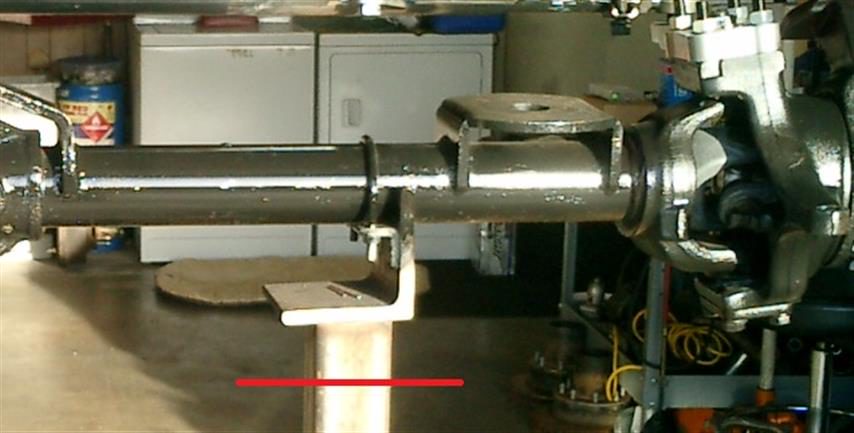

Looks good Carl, do you need 2 mounts with U bolts to weld to your fixture? I cleaned these off of my axle stand and won't need them I am 99% sure I saved them but am not home to check. They would be from the red line up in the picture. Mark

Attached files

79274=3602-commando 025 (Small).jpgImage Enlarger

May 9, 2013
2:13 pm
Avatar
Guest
Guest
Guest

Mark,

I would be glad to!!

May 9, 2013
2:16 pm
Avatar
Guest
Guest
Guest

Carl, I will check Friday night when I get home. Mark

May 11, 2013
2:56 am
Avatar
Guest
Guest
Guest

Pm'd you my number.[Image Can Not Be Found]

May 11, 2013
4:13 pm
Avatar
Guest
Guest
Guest

Thanks boss! I will be in touch.

June 6, 2013
11:58 am
Avatar
Guest
Guest
Guest

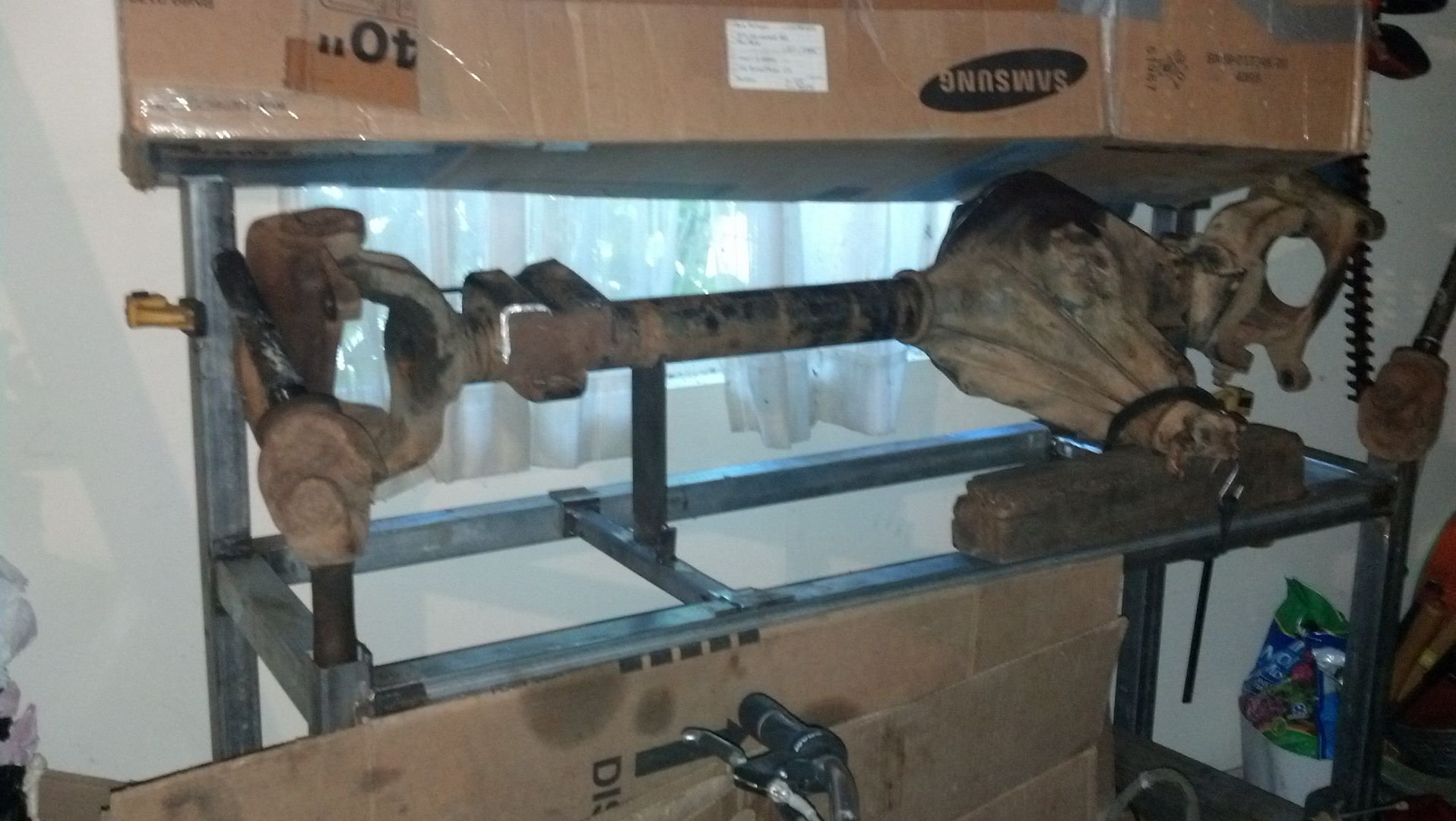

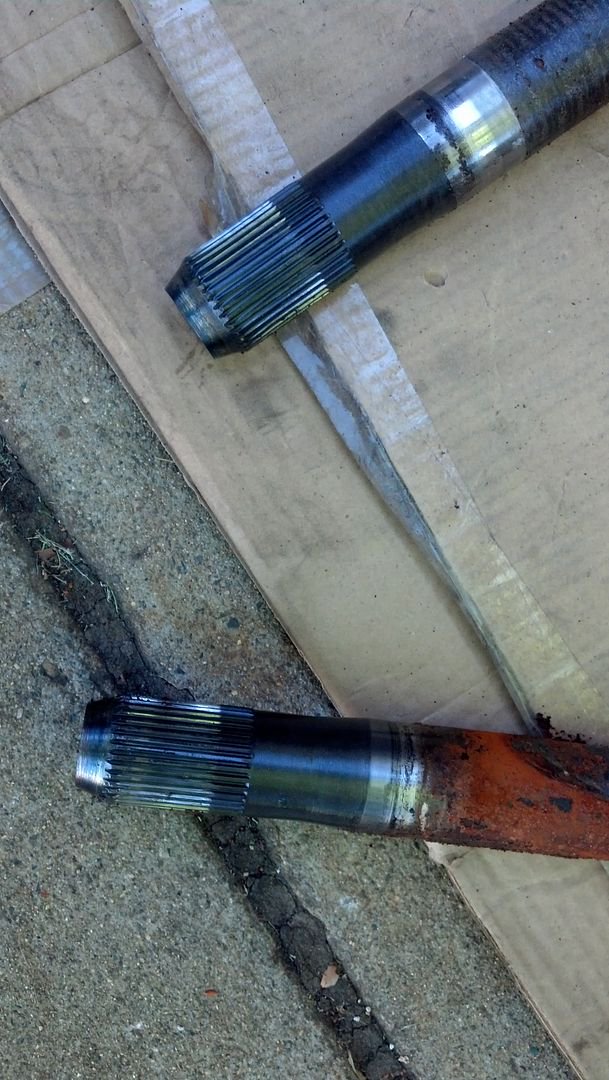

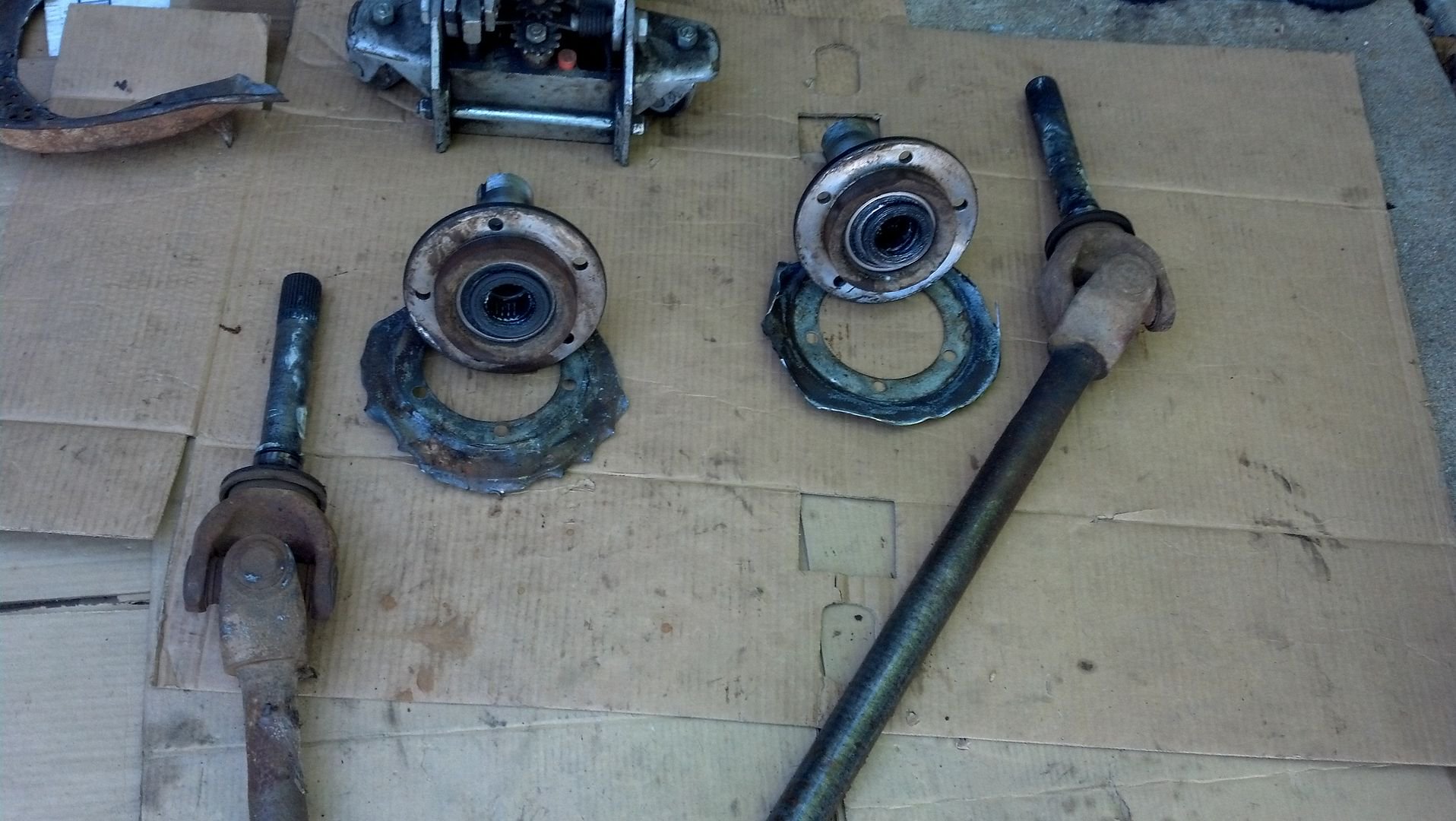

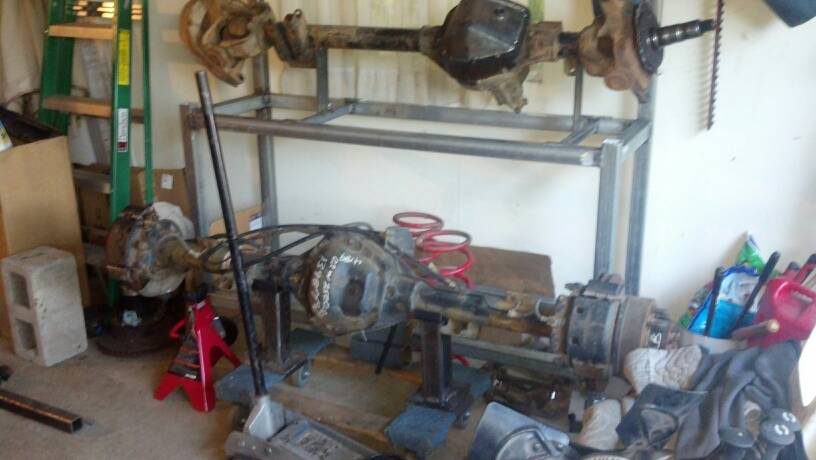

Got the spindles off finally! Shafts look good.

Image Enlarger

Image Enlarger

All has a place on the stand too. Made things so much more manageable.

Image Enlarger
