Juggy Rebuild

The juggy was hidden at a friends house until I could get a clean place in my garage to store it. The wife was pretty excited when it showed up at home.

Attached files

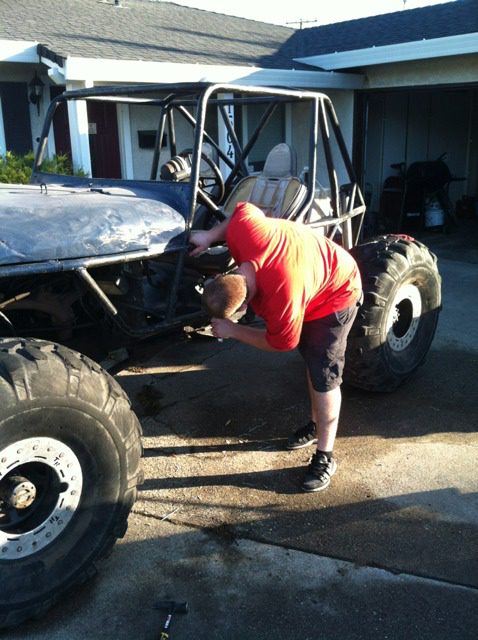

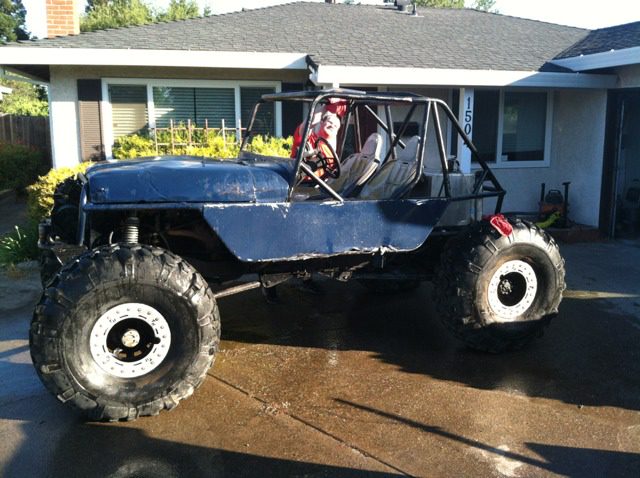

First thing I wanted to do was pull the jeep out and give it a good bath.



Then I began the tear down. The skins on the side of the jeep are super thin and were mounted using self tapping screws. They were pretty beat up and had some rips so off they came for some new skins in the near future.

Attached files

The tires that came on the jeep we're pretty sun rot. They had some nice cracks and were super dry. One if the tires had a nice tear in the sidewall that the precious owner attempted to repair by bailing wire. Well, that didn't work so he cut another tire up and glued it to the inside of the torn tire with an inner tube. I knew the tires had to go. The wheels were in not much better condition. 16.5 tires have terrible beads. The tires don't really stay on the rims with anything below 12psi. Well, the pervious owner kept loosing the inner bead so he used self tapping screws and screwed the tire to the wheel.



I posted the tires and wheels up for sale on pirate not expecting to have any interest. But the tires and wheels sold. 🙂

I really wanted to buy new tires for the juggy. I test fitted some 42 iroks and to be honest, they looked way to small. I knew I had to go with 44s again. My choices are slim at the 44 size. You have pit bulls or swampers. Pit bulls are way too much $$ so they were out of the question. New tsl's were about $2600. That wasn't going to happen either cause I still need to buy a trailer. So I searched and searched and found some used 44 tsl's in Tracy. ROAD TRIP!!

I really wanted to paint the juggy. I thought the blue on it looked cool but I wanted to lay a fresh coat of paint on the cage and figured I might as well paint the hood, grill and skins a new color to make the juggy my own.

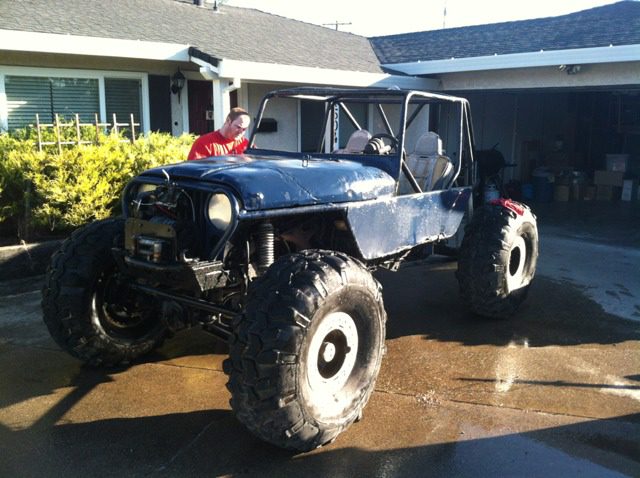

Before:

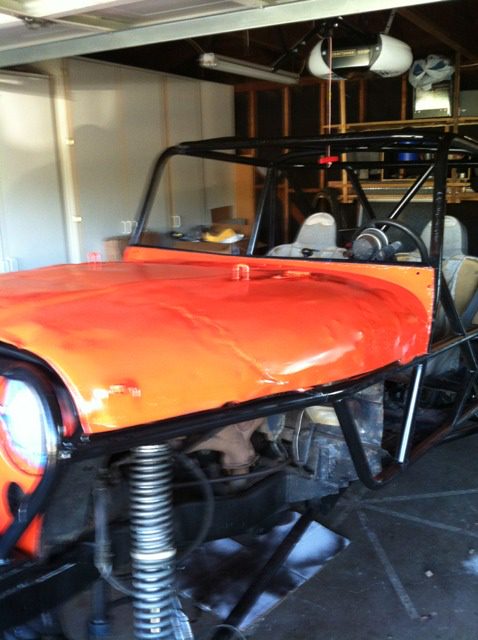

After seek peak:

Attached files

Looks like a great project! Cool color too!

"BKGM Jeepers" wrote: Looks like a great project! Cool color too!

Isn't orange in your future too?

Gregg, Looks good! I hope we can make the rubicon this weekend!

Quite the Monster Greg. Nice choice of paint. We will be able to see you coming from miles away!

"lj4x4" wrote: [quote="BKGM Jeepers"]Looks like a great project! Cool color too!

Isn't orange in your future too?

You are correct!

Thanks guys. I thought you guys would like the color.

I picked up some new wheels to go with my new used tires

Hummer beadlocks!! There's a guy in Placerville that is selling them out of his garage. These are 24 bolt recentered with press inserts to 3.5" back spacing. Hummer beadlocks are double beadlocks. They lock the inside and outside bead. No more worries of the bead falling off. I can drive on these things flat and the tire shouldn't come off the wheel.



Install write up to follow.

Attached files

Hummer beadlocks assembly:

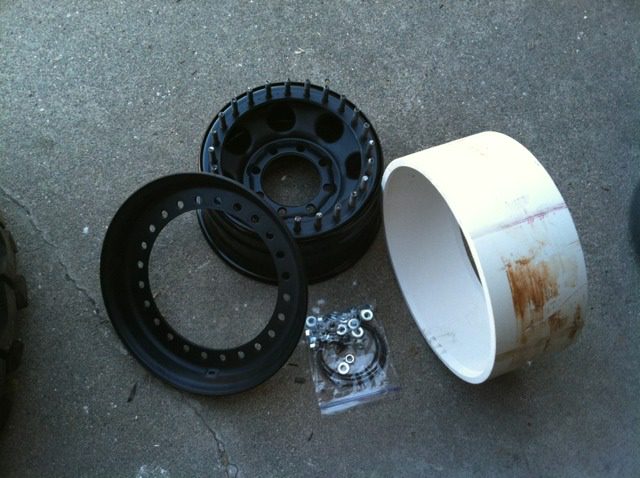

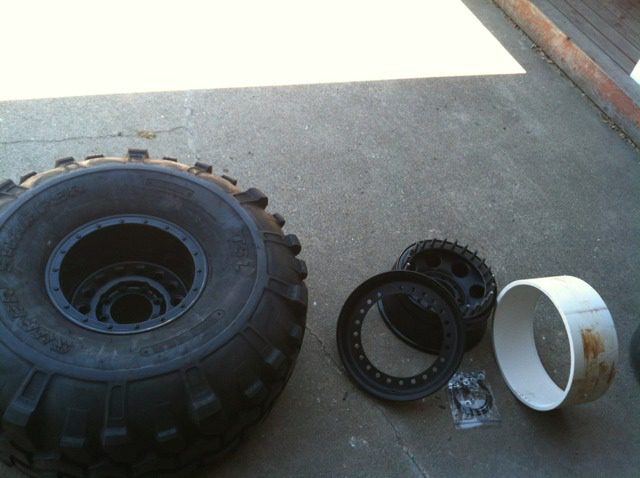

This is what you get. The main wheel, outer ring, valve stem, PVC insert and hardware.

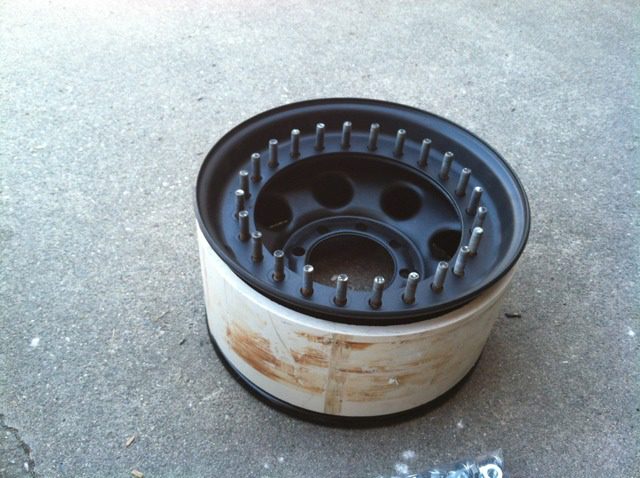

This is how they assemble without a tire.

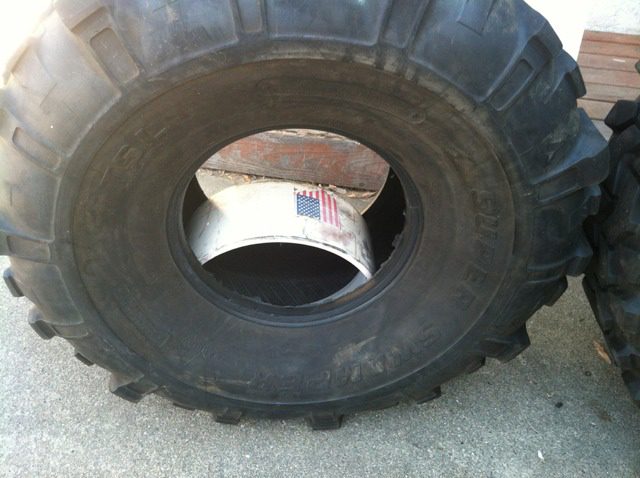

First thing you have to do is insert the PVC inside the tire. This can be tricky but soap and water does wonders with tires. One person can pop these PVC inserts into the tire.

Just turn the insert sideways and sit on it after you soap it. It will pop in then it's just a matter of turning the insert.

Attached files

All the PVC inserts have a small hole drilled in them to allow air flow through the insert.

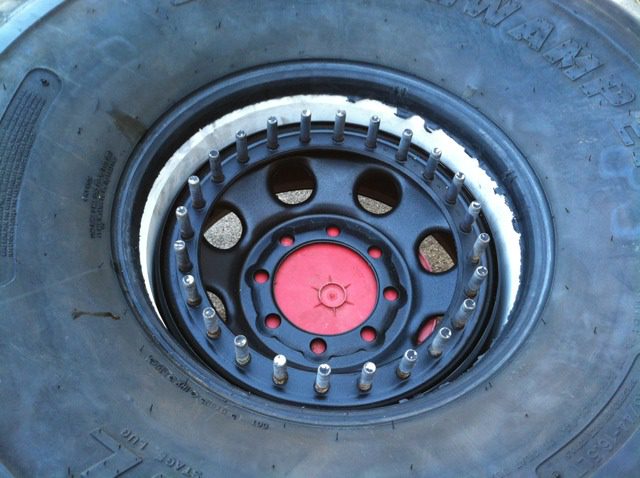

Next I set the rim on a bucket and placed the tire with the PVC on to the rim.

Keeping the tire elevated helps the tire sit properly on bathe rim.

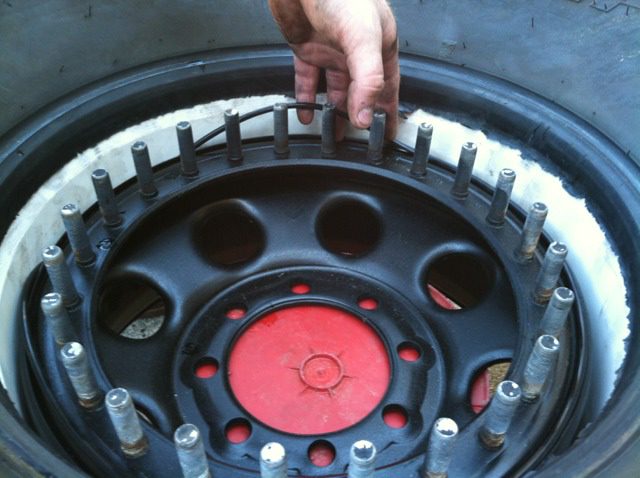

Next in your bag of hardware should be an O ring that is laid in the O ring channel on the wheel. This helps seal the wheel.

The O ring provided with my wheel was a tad to big. So I cut and super glued the O ring to size.



Now this is where there are differences of opinions. You can bolt the outer ring on and hope that the O ring is enough to seal the wheel. Or you can use silicon to help assist the O ring in sealing. I was able to have one wheel seal without silicon but for peace of mind we used silicon on the last 3.

Attached files

Next you add the outer ring. There should be plenty of room for the nuts to begin on the studs. In the best way that you can, you will begin to tighten the nuts on the studs and attempt to seat the outer ring as level as possible.

The nuts need to be tightened to 125 ft lb of torque. So you really have to crank on them. The outer ring needs to make contact with the rim. The Clarence between the two should be around .0015. So tighten until you cannot tighten anymore. This is where air tools really come in handy. Remember to not shake or motive the rim until the outer ring is seated or the O ring could fall out of place. Then you would have to disassemble the wheel and start over again.

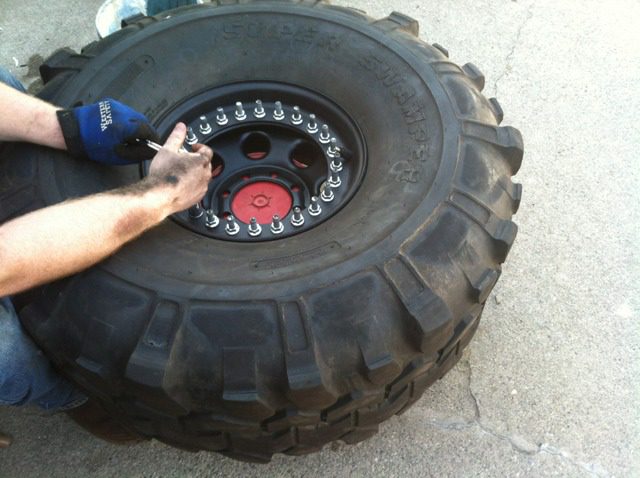

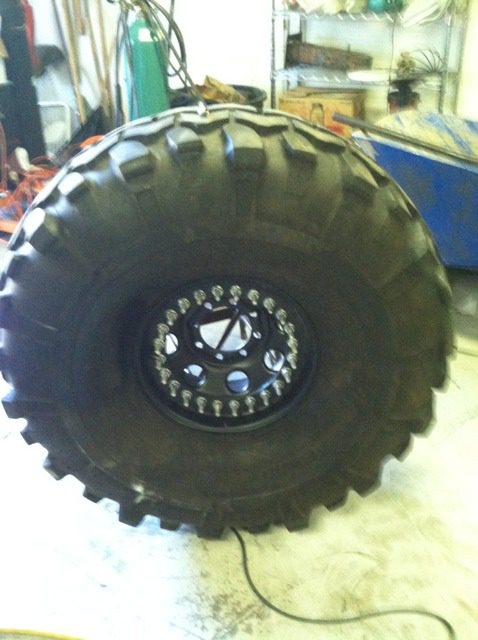

End product:

Attached files

Side not, tire beads are different thicknesses so you may need to do research on how wide your insert needs to be. For example, my swampers require a 6.75" insert. My inserts where larger then that so my brother had to sand them down with us belt sander.

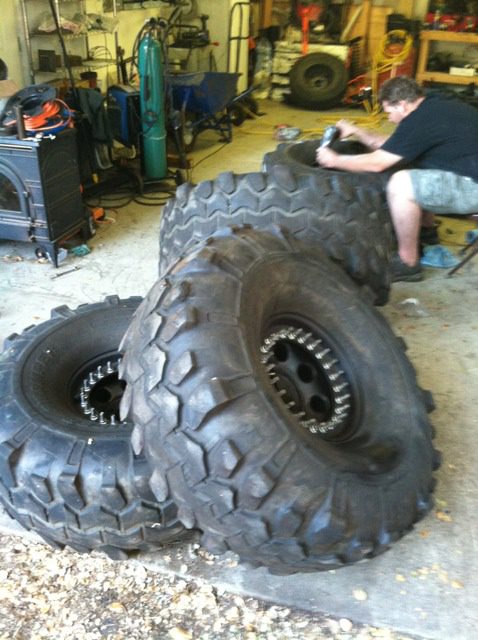

Jeff gets most of the credit for assembling these things. It took me 4 days messing with these things to only seal one. Where Jeff was able to mount and seal the last 3 in 4-5 hours.
